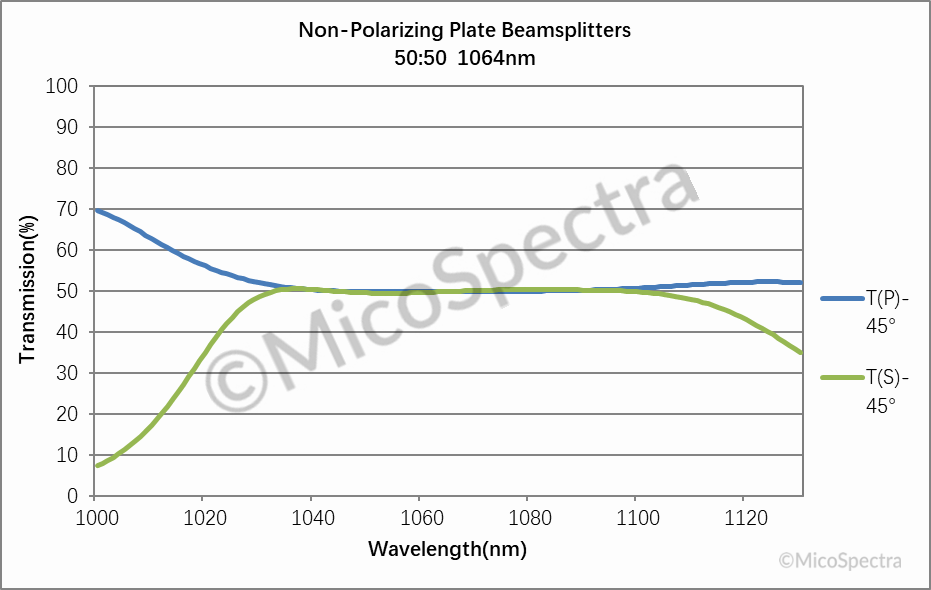

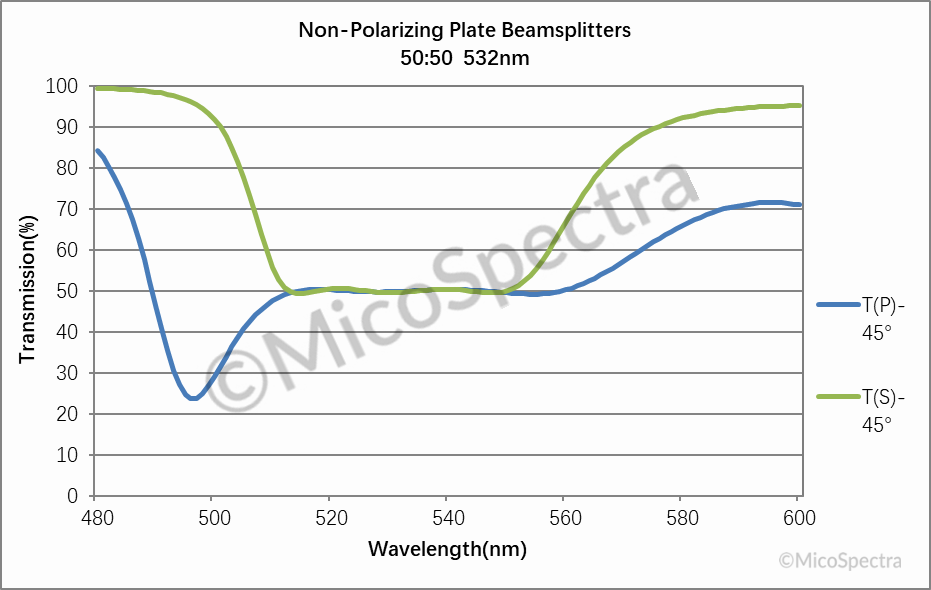

Non-Polarizing Plate Beamsplitters
Designed for 45° angle of incidence with random polarization
Negligible absorption, all dielectric coating
S- and p-polarized matched to <5%
Features
Custom broadband and single band available
Super-smooth polishing
Minimum absorption and scattering losses
Durability, Reliability
In-house OEM and custom manufacturing solutions
Applications
Laser … etc.
Please contact us for more specific applications and markets.
MicoSpectra specializes in the design and manufacture custom optics, thin film coatings and optical assemblies for prototype, research and OEM applications.
| Optical material | N-BK7, Custom |
| Size | 2mm to 80mm, round or square 10mm, 12.7mm, 15mm, 20mm, 25.4mm, 30mm, etc. |
| Surface quality: | 10-5 Scratch-Dig |
| Surface flatness | < 1/4λ @ 632.8nm |
| Angle of incidence | 45° |
| Wavelength | Laser line 355nm, 405nm, 532nm, 633nm, 780nm, 830nm, 980nm, 1064nm, 1310nm, 1550nm, custom |
| Split ratio | 10:90, 30:70, 50:50, 70:30, 90:10 or Custom R:T |
| Polarization | |Rs-Rp|<5% |
| AR coating | R<0.25% @ 0° AOI |
| Clear Aperture | >90% of central dimension |
